Architecture
MYRAD is built on a modern, production-grade stack optimized for security, scalability, and privacy-first design.
Technology Stack
| Layer | Technology | Rationale |
|---|---|---|
| Frontend | React + TypeScript + Vite | Type-safe, fast, production-ready |
| Styling & Motion | Tailwind CSS + Framer Motion | Flexible design system with fluid animation |
| Authentication | Privy | Seamless email, social, and wallet sign-in |
| Verification | Reclaim Protocol | Zero-knowledge verification without exposure |
| Backend | Express + PostgreSQL | Lightweight, scalable API and analytics storage |
| On-Chain | Solidity + OpenZeppelin, on Base | Audited contract standards for the rewards layer |
System Components
Frontend Layer
- React 18: Latest concurrent rendering for smooth user experiences
- TypeScript: Full type safety across the application
- Privy Integration: Frictionless onboarding without complex wallet setup
Verification Layer
- Reclaim Protocol: Cryptographic verification of app activity
- TLS-Based Proofs: Attestation from source APIs
- On-Device Processing: User data never leaves the device
Backend Layer
- Express API: RESTful endpoints with rate limiting and validation
- PostgreSQL: Secure storage for aggregated signals
- Pipeline Architecture: Dedicated processing pipelines for each data provider
On-Chain Layer
- Base: The MYRAD token and rewards layer settle on Base
- Audited Standards: Contracts build on OpenZeppelin's battle-tested libraries
- Public Verifiability: Verified contributions can be anchored on-chain. See Token & Staking

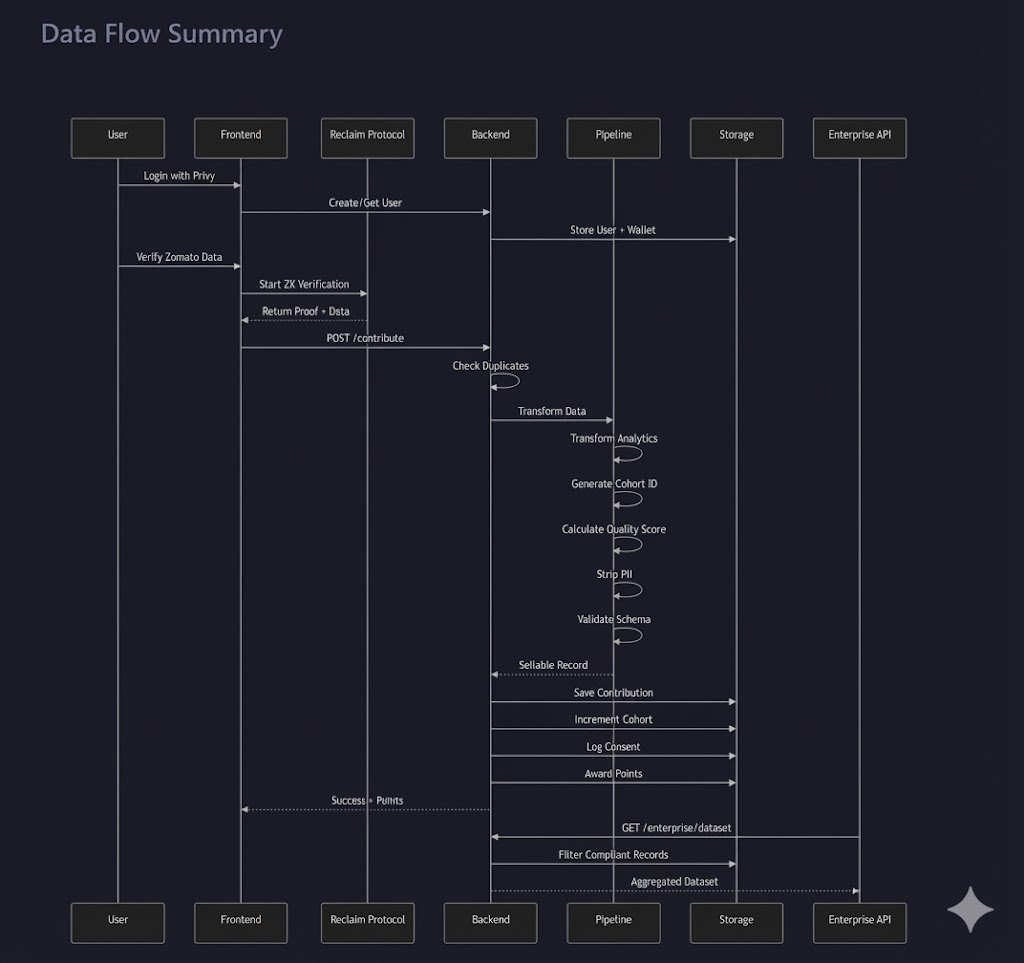

Data Flow
Privacy Architecture
MYRAD enforces privacy at the system level:
| Constraint | Implementation |
|---|---|
| No raw data retention | Personal data never stored |
| No personal identifiers | PII excluded from all outputs |
| Cohort aggregation | Signals represent group behavior |
| Minimum k-anonymity | Thresholds enforced automatically |
Security Implementation
| Layer | Implementation |
|---|---|
| Transport | TLS 1.3 for all connections |
| Authentication | Privy-managed sign-in and sessions |
| Data Storage | Encrypted database connections |
| API Security | Rate limiting, input validation, CORS policies |
| Proof Verification | Reclaim Protocol attestation validation |
Compliance
MYRAD is designed for GDPR and CCPA compatibility:
- Privacy by design architecture
- No personal data collection or retention
- Clear consent mechanisms
- User opt-out at any time
- Auditable data pipelines
